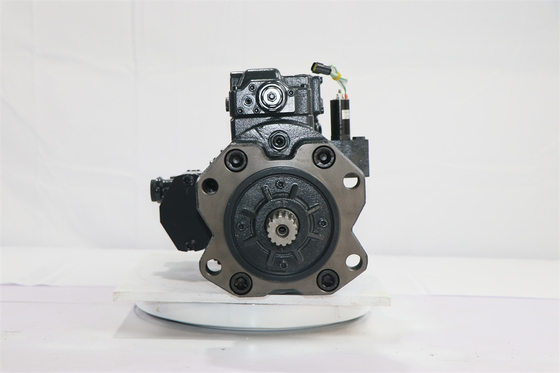

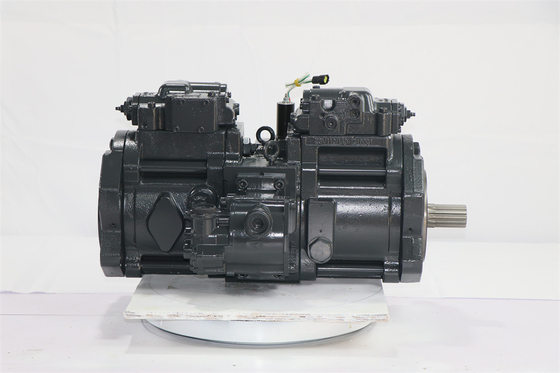

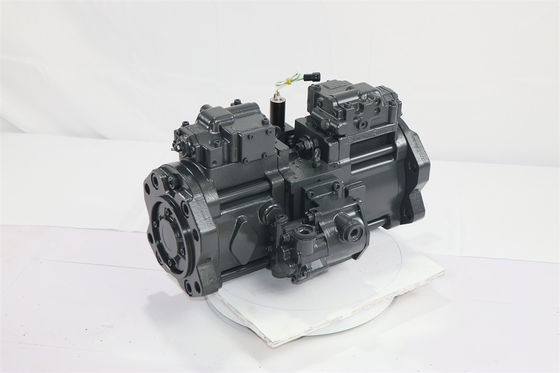

Belparts excavator main pump SOLAR 220LC SOLAR 220LC-6 hydraulic pump 2401-9225 2401-9158 2401-9303 for doosan
Quick Detail of Excavator Hydraulic Pump
Product Name:Excavator Hydraulic Pump
Brand:Belparts
Machine model:SOLAR 220LC SOLAR 220LC-6
Packing Size:84*38*49
Part number: 2401-9225 2401-9158 2401-9303
Pressure:Standard, High Pressure
| Product Name | Excavator Hydraulic Pump |
| Brand | Belparts |
| Machine model | SOLAR 220LC SOLAR 220LC-6 |
| Packing Size | 84*38*49 |
| Part number | 2401-9225 2401-9158 2401-9303 |
| Pressure | Standard, High Pressure |
| # | Part No | Part Name | Comment | Qty. | Price request |
| 325 | 120592 | CASING, VALVE | 1 | ||
| 401 | 113797 | BOLT, HEX SOCKET HEAD | 8 | ||
| 406 | 200846 | BOLT, HEX SOCKET HEAD | 4 | ||
| 469 | 108848 | PLUG(PF3/8) | 2 | ||
| 490 | 224308 | PLUG | 21 | ||
| * | 717005 | TILTING PIN ASS'Y | 2 | ||
| 407 | 200838 | BOLT, SOCKET M6X1.0X65 | 3 | ||
| 468 | 108847 | PLUG PF3/4 | 3 | ||
| 531 | 113807 | PIN, TILTING | 1 | ||
| 548 | 113380 | PIN, FEEDBACK | 1 | ||
| 532 | 113798 | PISTON, SERVO | 2 | ||
| 534 | 113799 | STOPPER(L) | 2 | ||
| 535 | 113800 | STOPPER(S) | 2 | ||
| * | 704550A | CHECK 1 ASS'Y | 2 | ||
| 541 | 113706 | SEAT | 2 | ||
| 543 | 113705 | STOPPER(1) | 2 | ||
| 545 | 200166 | BALL, STEEL | 2 | ||
| * | 704544A | CHECK 2 ASS'Y | 2 | ||
| 541 | 113706 | SEAT | 2 | ||
| 544 | 113703 | STOPPER 2 | 2 | ||
| 545 | 200166 | BALL, STEEL | 2 | ||
| 702 | 220019 | O-RING 1BG35 | 2 | ||
| 710 | 204452 | O-RING 1BG95 | 2 | ||
| 717 | 201639 | O-RING 1BG145 | 4 | ||
| 724 | 201765 | O-RING 1BP8 | 16 | ||
| 725 | 201689 | O-RING 1BP11 | 5 | ||
| 726 | S8000141 | O-RING | 1BP14 | 2 | |
| 728 | 201721 | O-RING 1BP24 | 3 | ||
| 732 | 220016 | O-RING 1BP18 | 3 | ||
| 774 | 212231 | SEAL, OIL TCV40V | 1 | ||
| 789 | 203480 | RING, BACK-UP T2P18 | 2 | ||
| 792 | 203418 | RING, BACK-UP T2G45 | 2 | ||
| 806 | 201557 | NUT, HEX (ORNM16 | 2 | ||
| 808 | 102048 | NUT=ORMN20 | 2 | ||
| 824 | 202606 | RING, SNAP C-40S | 2 | ||
| 885 | 113801 | PIN D8X12L | 2 | ||
| 886 | 200678 | PIN, SPRING D6X14 | 2 kg | 2 | |
| 901 | 212033 | BOLT, EYE | 2 | ||
| 953 | 118892 | SCREW, SET M16X30L | 2 | ||
| 954 | 113803 | SCREW, ADJUST | 2 | ||
| * | 2401-9225KT | SEAL KIT, BODY+REG. | 1 | ||
| - | 2401-9225 | PUMP | 1 | ||
| - | 2401-9225A | PUMP | 1 | ||
| - | 2401-9225B | PUMP | 1 | ||
| - | 2401-9225C | PUMP, MAIN | 128 kg | 1 | |
| 79 | 707847 | VALVE, ELECTRO PROPORTIONAL | 1 | ||
| 111 | 124568 | SHAFT, DRIVING(F) | 1 | ||
| 113 | 124569 | SHAFT, DRIVING(R) | 2 kg | 1 | |
| 114 | 113783 | COUPLING, SPLINE | 1 | ||
| 123 | 219362 | BEARING, ROLLER | 2 | ||
| 124 | 219363 | BEARING, SPACER | 2 | ||
| 127 | 113784 | BEARING, SPACER | 4 | ||
| * | 704545-PH | CYLINDER ASS'Y(R) | 1 | ||
| 141 | 113804 | BLOCK, CYLINDER | 6 kg | 1 KIT | |
| 313 | 115798 | PLATE, VALVE(R) | 1 | ||
| * | 704548-PH | CYLINDER ASS'Y(L) | 1 | ||
| 141 | 113804 | BLOCK, CYLINDER | 6 kg | 1 KIT | |
| 314 | 115799 | PLATE, VALVE(L) | 1 | ||
| * | 704543A | PISTON & SHOE ASS'Y | 2 SET | ||
| 151 | 113778 | PISTON | 18 | ||
| 152 | 113779 | SHOE, TRACK | 18 | ||
| 153 | 115786 | PLATE, PUSH | 2 | ||
| 156 | 121437 | BUSH, SPHERICAL | 2 | ||
| 157 | 113787 | SPRING, CYLINDER | 18 | ||
| 158 | 113789 | SPACER | 2 | ||
| 211 | 113790 | PLATE, SHOE | 2 | ||
| * | 717008 | SWASH PLATE ASS'Y | 2 | ||
| 212 | 113780 | PLATE, SWASH | 1 | ||
| 214 | 113624 | BUSH, TILTING | 1 | ||
| 250 | 718424 | SUPPORT KIT | 1 | ||
| 251 | 113791 | SUPPORT | 2 | ||
| 261 | 113792 | COVER, SEAL(F) | 1 kg | 1 | |
| 271 | 113794 | CASING, PUMP | 2 | ||
| 310 | 707849 | VALVE BLOCK KIT | 21 kg | 1 | |
| 312 | 113795 | BLOCK, VALVE | 1 |
