جزئیات محصولات

صفحه اصلی > محصولات >

Belparts excavator E329E 333-2908 2676796 travel motor fit Aftermarket parts

محصولات

قطعات پمپ هیدرولیک بیل هیدرولیکی

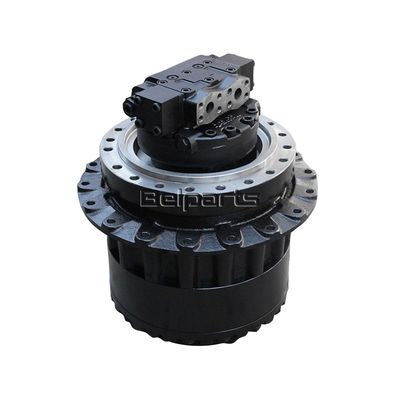

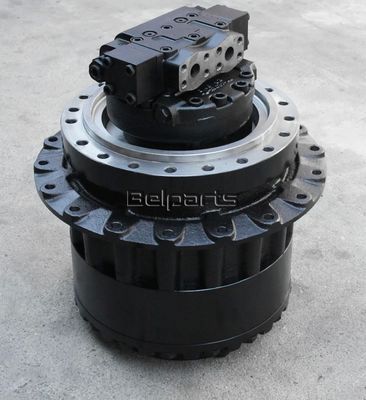

Belparts excavator E329E 333-2908 2676796 travel motor fit Aftermarket parts

مقدار تولیدی:	1 عدد
قیمت:	Negotiable Price
بسته بندی استاندارد:	بسته حمل و نقل استاندارد
دوره تحویل:	2-3 روز
روش پرداخت:	L/C ، T/T ، PayPal ، تضمین تجارت
ظرفیت عرضه:	1000 قطعه در ماه

اطلاعات دقیق

توضیحات محصول

اطلاعات دقیق

محل منبع

نام تجاری

Belparts

شماره مدل

E329E

E329E

شماره قطعه:

333-2908 2676796

نام بخشی:

موتور سفر

کاربرد:

کاوشگر

نام محصول:

آخرين راننده

مارک:

بلپارتز

مادی:

فولاد

ضمانت:

6 ماه

برجسته کردن:

E329E excavator travel motor,Aftermarket excavator travel motor,Belparts travel motor Assy

Aftermarket excavator travel motor

Belparts travel motor Assy

توضیحات محصول

Belparts Excavator E329E 333-2908 2676796 Travel Motor Fit Aftermarket Parts

The excavator travel assembly is the core component for machine movement, consisting of a hydraulic motor, reduction gearbox, sprocket, track chain, idler wheel, carrier roller, and track roller. Its key function is to convert hydraulic energy into mechanical power, enabling stable mobility across challenging terrains.

Product Specifications

Brand	Belparts
Spare Parts Name	Excavator Travel Motor Assy
Model	E329E
Part Number	333-2908 2676796
Warranty	6 Months
MOQ	1pcs
Delivery Terms	After payment 3-7days
Payment Terms	L/C, T/T, Paypal, Trade Assurance

Component Parts List

No.	Part Number	Description	Qty
1	3E2338	PLUG-PIPE	2
2	7Y0752	SHIM (0.80 MM THICK)	1
3	7Y0753	SHIM (1.00 MM THICK)	1
4	7Y0754	SHIM (1.60 MM THICK)	1
5	0940578	PLATE (8.0 mm THICK)	1
6	0940579	PLATE (9.0 mm THICK)	1
7	0940580	PLATE (10.0 mm THICK)	1
8	0941528	WASHER (53X84X1-MM THK)	12
9	1141540	PIN-DOWEL	4
10	1688452	BEARING (SPL BALL)	2
11	1695589	GEAR-SUN (24-TEETH)	1
12	1695590	GEAR-SUN (24-TEETH)	1
13	1695592	GEAR-PLANETARY (23-TEETH)	3
14	1695593	GEAR-PLANETARY (23-TEETH)	3
15	1695601	SHAFT-PLANETARY	3
16	1695602	SHAFT-PLANETARY	3
17	1719387	GEAR-RING (64-TEETH)	1
18	1912569	BEARING AS (CAGED ROLLER)	3
19	1912570	BEARING AS (CAGED ROLLER)	6
20	1912571	CARRIER-PLANETARY	1
21	1912676	GEAR-RING (72-TEETH)	1
22	1912683	GEAR-SUN (20-TEETH)	1
23	1912684	GEAR-PLANETARY (21-TEETH)	3
24	1912685	BEARING AS	3
25	1912686	CARRIER AS	1
	1912687	RACE-BEARING	3
26	1912689	WASHER (34X70X1-MM THK)	3
27	1912690	WASHER (42.3X70X1-MM THK)	3
28	1994503	COVER	1
29	2071571	SEAL GROUP-DUO-CONE	1
	2143570	RING-TORIC	2
30	2676797	HOUSING-MOTOR	1
31	2676798	HOUSING	1
32	2676799	CARRIER-PLANETARY	1
33	2676800	GEAR-COUPLING	1
34	2676863	SHIM (0.75-MM THK)	1
35	2676864	SHIM (0.85-MM THK)	1
36	2676865	SHIM (0.9-MM THK)	1
37	2676866	SHIM (0.95-MM THK)	1
38	2676867	SHIM (1.2-MM THK)	1
39	2676868	SHIM (1.4-MM THK)	1
40	2676869	SHIM (1.8-MM THK)	1
41	2676870	SHIM (2-MM THK)	1
42	2676871	SHIM (2.3-MM THK)	1
43	0931731	RING - RETAINING	2
44	0950891	PIN - SPRING	6
45	0960433	RING (RETAINING)	3
46	0963216	SETSCREW-SOCKET (M12X1.75X12-MM)	2
47	1719298	SEAL-O-RING	1
48	1798733	BOLT (M20X2.5X170-MM)	16
49	7M8485	SEAL,ADAPTER,MOTOR PART OF KIT P/N 5R1429	2
50	7Y0595	SPACER (58X79.6X6-MM THK)	3
51	7Y5217	BOLT-SOCKET HEAD (M20X2.5X70-MM)	16
52	8T3282	WASHER (HARD) (22X35X3.5mm THK)	16
53	8T4123	WASHER-PLATED (22X35X3.5-MM THK)	16
54	9X6032	BOLT (HEX SOCKET HEAD) (M10X1.5X30mm)	12
55	1U8846	SEALANT (FOR LOCATIONS A)
AVAILABLE REPAIR KIT(S):
	2676818	KIT-FINAL DRIVE BEARING	1
USE AS REQUIRED
KIT MARKED J SERVICES PART(S) MARKED J
METRIC PART

Our main products are Excavator Hydraulic Spare Parts, Hydraulic Main Pump, Swing Motor, Travel Motor, Final Drive Ass'y, Swing Device Ass'y, Swing Gearbox, Travel Gearbox, Gears, Regulators, Relief Valve, Fan Motor and other hydraulic items with genuine and aftermarket quality. Until now, our products have been exported to more than 198 countries and regions, spreading all over the Middle East, Southeast Asia, Africa, North America, South America, Europe and Oceania with our own brand "Belparts", which is highly praised by foreign customers and enjoys a high reputation.

Undercarriage System Overview

The excavator undercarriage is a critical component responsible for supporting and propelling the entire machine, ensuring stable operation across various terrains. Its primary functions include providing power, supporting the machine's frame, transmitting driving force, and ensuring mobility and stability in complex environments.

Key Undercarriage Components

Travel Motor (Hydraulic Motor): Supplies driving force by converting hydraulic energy into mechanical energy to rotate the tracks.
Track (Crawler Belt): Directly contacts the ground, providing traction and stability. Typically made of high-strength steel to adapt to different terrains.
Sprocket (Drive Wheel): Connects the travel motor to the track, transmitting power to move the track.
Idler Wheel (Guide Wheel): Guides the track's movement and maintains proper alignment, usually located at the front.
Carrier Rollers (Bottom Rollers): Support the machine's weight and distribute pressure evenly to reduce ground impact.
Track Rollers (Top Rollers): Support the upper part of the track, preventing sagging and ensuring smooth operation.
Track Frame (Undercarriage Frame): Supports and secures all components, ensuring structural stability.
